Could Llano Handle Battlefield 3?

The long awaited third-installment of EA’s popular Battlefield game series has arrived. With its attractive gameplay and gorgeous visual effects, Battlefield 3 (BF3) sure doesn’t disappoint. Frostbite 2 is the engine, and it really delivers the kind of quality that motivates some gamers to upgrade their PC, just to experience BF3 at it’s best.
But not everyone is able to afford a super high-end system capable of running BF3 at its “Ultra” graphics setting. So, what if you happen to have a budget PC equipped with an integrated graphics solution as in AMD’s Llano series of processors? Could the on-board graphics take on BF3’s demanding engine? Before we get to the answer, let us first examine the game’s minimum hardware requirement.

Battlefield 3 Minimum System Requirement

As announced by EA on September 20, 2011, this is the minimum system requirement that must be met or exceeded in order to play BF3 with acceptable frame rates:

• OS : Windows Vista (Service Pack 2) 32-Bit

• Processor: 2 GHz Dual Core (Core 2 Duo 2.4 GHZ or Althon X2 2.7 GHz)

• Memory: 2 GB

• Hard Drive Space: 20 GB

• Graphics Card (AMD): DirectX 10.1 compatible with 512 MB RAM (ATI RADEON 3000, 4000, 5000 OR 6000 series, with ATI RADEON 3870 or higher performance)

• Graphics Card (NVIDIA): DirectX 10.0 compatible with 512 MB RAM (NVIDIA GEFORCE 8, 9, 200, 300, 400 OR 500 series with NVIDIA GEFORCE 8800 GT or higher performance)

• Sound card : DirectX compatible

• Keyboard and Mouse

• DVD ROM Drive

For us, the above list seems quite normal for today’s standard, although we cannot tell for sure how much frame per second one could expect from this configuration.
Some people might be discouraged upon seeing BF3’s minimum system requirement, especially its “graphics card” section. However, a closer examination reveals that BF3 does not demand that much processing power from your graphics hardware. Let’s look at the official statement: “DirectX 10.1 compatible with 512 MB RAM, with ATI RADEON 3870 or higher performance“. The ATI Radeon HD3870 mentioned here tells us that the game should still be playable even on an affordable DirectX 10 graphics card.
For starters, a Radeon HD 3870 scored between 3800 to 4000 points in 3DMark Vantage (Performance Preset) benchmark, according to our old database. Now, you can get similar performance from an integrated GPU solution from AMD that’s certainly won’t hurt your wallet. That’s right, AMD’s Llano is the answer!
With its integrated Radeon graphics core, AMD A-Series APU (Llano) has no trouble keeping up with dedicated graphics cards like the ATI Radeon HD 3870. We were able to score 3500 points without overclocking the on-board GPU, as seen in the picture below:

Click to enlarge

So, now we know that Llano is not so far behind the HD3870 mentioned as the minimum graphics card required for BF3. It’s time to find out if it really has what it takes to run the game!

Our Setup of Choice: AMD A8-3850, MSI A75A-G35, Kingston HyperX DDR3-1600

We had one goal in mind when selecting the hardware components for this test: constructing a system capable of running Battlefield 3 that still feels easy on the wallet. The processor is AMD A8-3850 on MSI A75A-G35 motherboard, coupled with Kingston HyperX DDR3-1600 4GB memory module. That ought to do it.
The AMD Llano A8-3850 processor (or APU, to be exact) was chosen because it has four CPU cores and an integrated GPU that could come close to Radeon HD 3870 in terms of graphics processing prowess. Kingston’s HyperX KHX1600C9D3B1K2/4GX (DDR3-1600, 4GB kit) was chosen because it offers good performance and capacity while still being affordable to most people. The memory was set to run at its specified rating of DDR3-1600 (therefore not following the default setting of 1333 MHz or overclocked to 1866 MHz).
#Notice : An SSD was used (instead of conventional hard drive) as the main storage unit to avoid sudden drops of frame rate in the game due to hard drive accessing activities during the game. It is important to make sure that the minimum FPS we obtained was purely from the works of the GPU, and not incidental storage accesses.

Battlefield 3 Graphics Setting: LOW Preset, 1280×720

Battlefield 3 was then installed and we ran a preliminary test using various graphics detail settings to find out the right one that provides a reasonable frame rate for playing.
We found BF3 to be quite playable on our budget-oriented system at 1280×720, LOW preset. Click on below picture to enlarge.

Surprisingly enough, even at its lower detail setting, the visuals in this game are still appealing to the eyes… well, to ours at least. Save for all the jaggies that seem to be appearing just about everywhere.

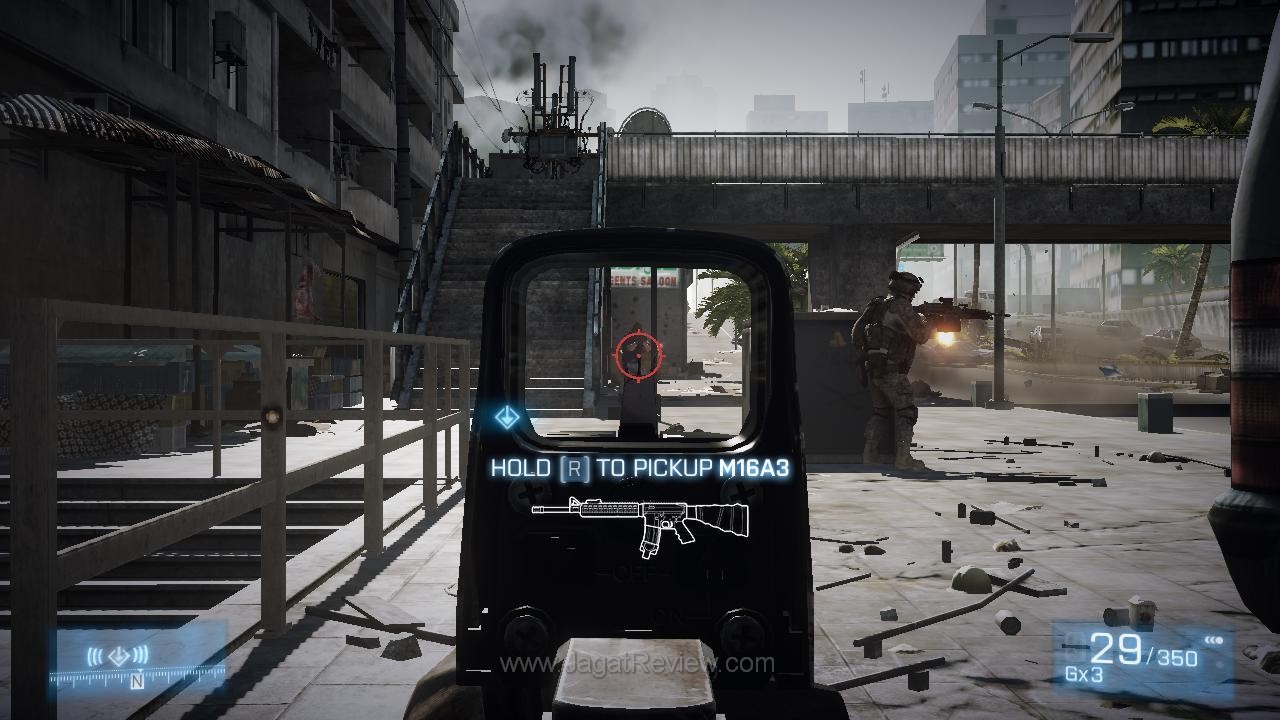

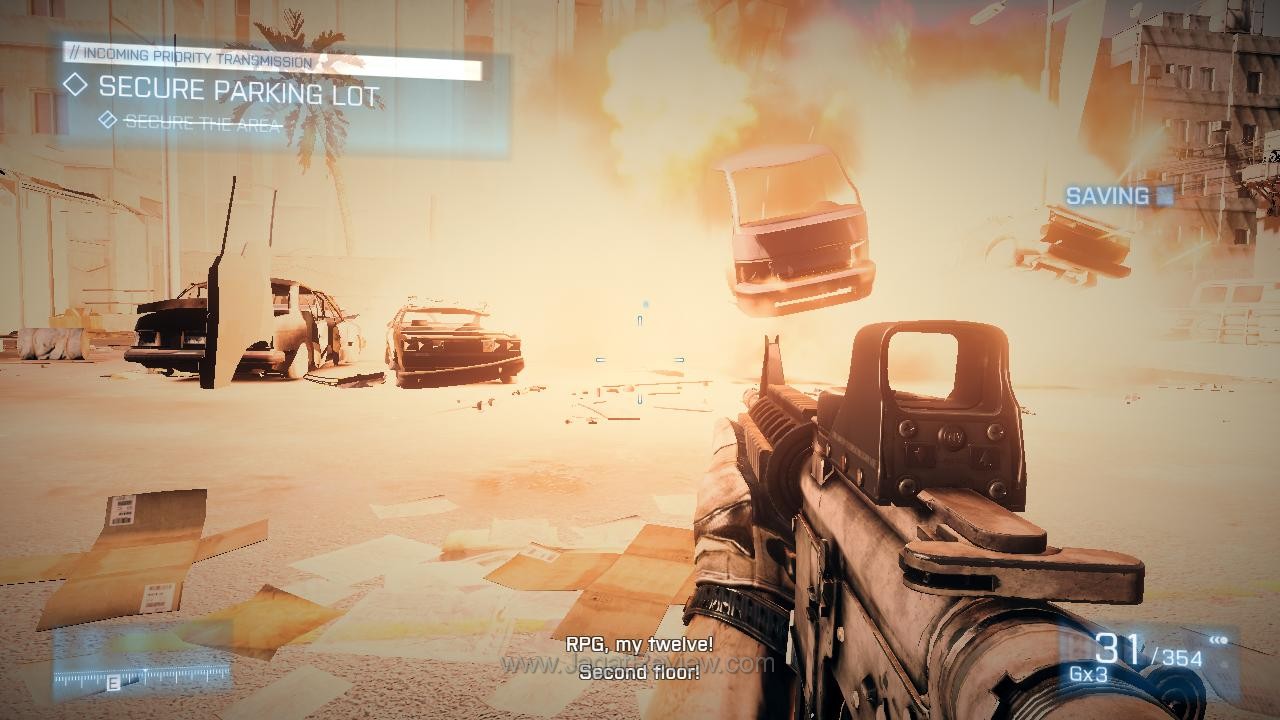

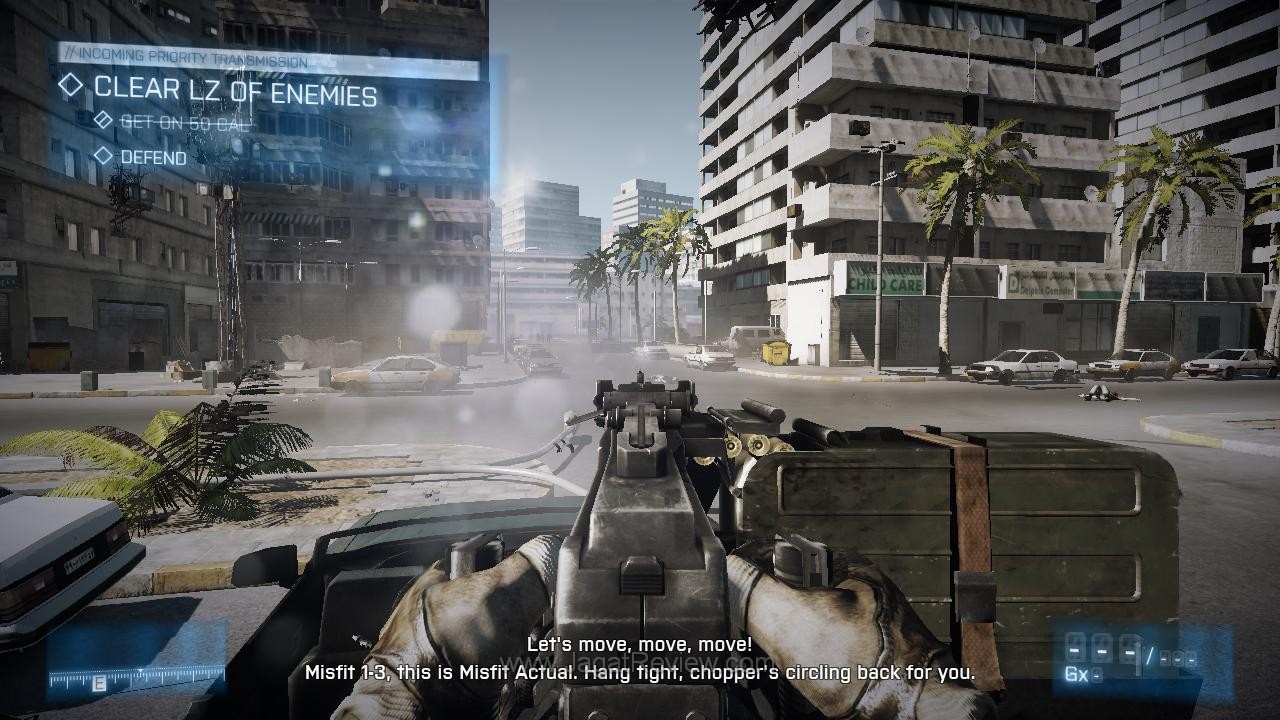

Here are some screenshots taken at 1280×720, Low detail setting. As usual, click to enlarge.
